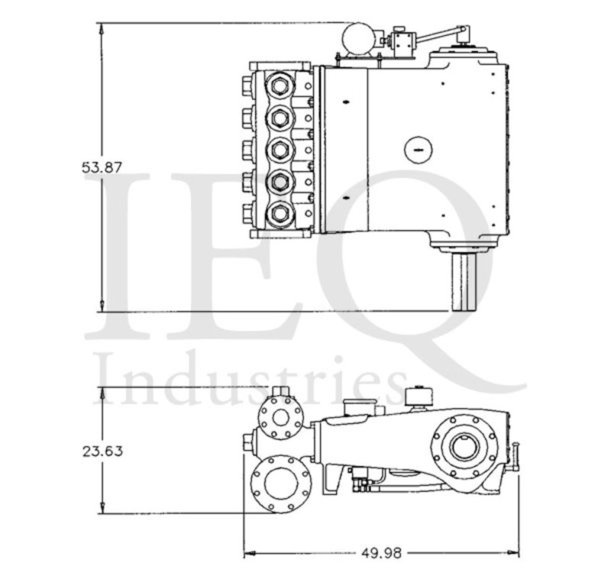

Wheatley, Q4240-MS, Quintuplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | quintuplex |
| Minimum Plunger Diameter: | 1¼" |
| Maximum Plunger Diameter: | 1¾" |
| Stroke length: | 4½" |
| Maximum Working Pressure: | 7,170 PSI |
| Rod/Piston Load: | 8800lb |
| Gallons per Minute: | 91.4 |
| Barrels per Day: | 3134 |
| Brake Horse Power: | 216.0 |
Mouse-over to Enlarge
- Pump Curves
- Performance Data Table
- Features/benefits not available.
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 390 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| Q4240-MS | 1.750 | 2.4053 | 8.032 | 0.2343 | 3659 | 402 | 12 | 1205 | 35 | 2008 | 59 | 2811 | 82 | 3133 | 91 |
| 1.625 | 2.0739 | 6.926 | 0.2020 | 4243 | 346 | 10 | 1039 | 30 | 1732 | 51 | 2424 | 71 | 2701 | 79 | |
| 1.500 | 1.7671 | 5.901 | 0.1721 | 4980 | 295 | 9 | 885 | 26 | 1475 | 43 | 2066 | 60 | 2302 | 67 | |
| 1.375 | 1.4849 | 4.959 | 0.1446 | 5926 | 248 | 7 | 744 | 22 | 1240 | 36 | 1736 | 51 | 1934 | 56 | |
| 1.250 | 1.2272 | 4.098 | 0.1195 | 7170 | 205 | 6 | 615 | 18 | 1025 | 30 | 1434 | 42 | 1598 | 47 | |
