Wheatley, HP165-AM (163Q-4M), Quintuplex, Plunger Pump

  • 163 horsepower 4 1/2" stroke horizontal quintuplex single acting plunger pump
  • Available in four end material
  • Pump speeds up to 390 RPM
  • Multiple accessory gear reduction unit ratios

Specs

Spec U.S. Standard
Type: quintuplex
Minimum Plunger Diameter: 1¾"
Maximum Plunger Diameter: 2½"
Stroke length: 4½"
Maximum Working Pressure: 3,600 PSI
Rod/Piston Load: 6600lb
Gallons per Minute: 186.5
Barrels per Day: 6394
Brake Horse Power: 162.5

HP165-AM (163Q-4M), Quintuplex, Plunger Pump

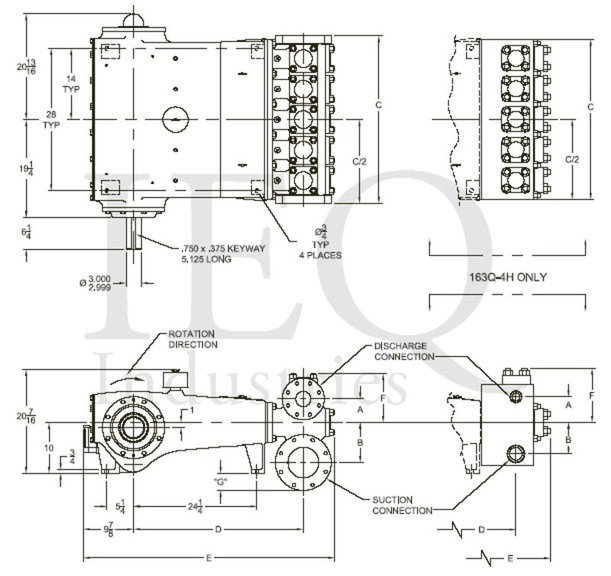

Mouse-over to Enlarge HP165-AM (163Q-4M), Quintuplex, Plunger Pump

Hover over Power Curves to reveal RPM and GPM

Disclaimer of Suitability of Data

PumpEnglish Units50 RPM150 RPM250 RPM350 RPM390 RPM
Plunger Dia. In.Plunger Area Sq. In.BPD per RPMGPM per RPMMax Press. PSIBPDGPMBPDGPMBPDGPMBPDGPMBPDGPM
HP165-AM
163Q-4M		2.5004.908716.3930.4781134582024245972409812057381676393186
2.3754.430114.7950.4315149074022221965369910851781515770168
2.2503.976113.2780.387316606641919925833209746471365179151
2.1253.546611.8440.345418615921717775229618641451214619135
2.0003.141610.4910.306021015251515744626237636721074092119
1.8752.76129.2210.26892390461131383402305673227943596105
1.7502.40538.0320.2343274440212120535200859281182313391

Disclaimer of Suitability of Data

  • Cast iron power frame
  • Ductile Iron Crankshaft
  • Cast iron crossheads with upper/lower oil grooves
  • Heavy-duty, tapered roller crankshaft bearings
  • Precision type, aluminum alloy crankpin bearings
  • Bronze bearing crosshead pin bushings
  • Flooded sump, splash distribution lubrication
  • Rated rod load is 6600 lbs.
  • Plungers - Solid Ceramic, or Tungsten coated
  • Spherical suction and discharge valves
  • Valve Seat & Valve Body: Nitronic 50
  • Spring: Inconel
  • Cage: 316L Stainless Steel
  • Severe duty valves with inserts available Â
