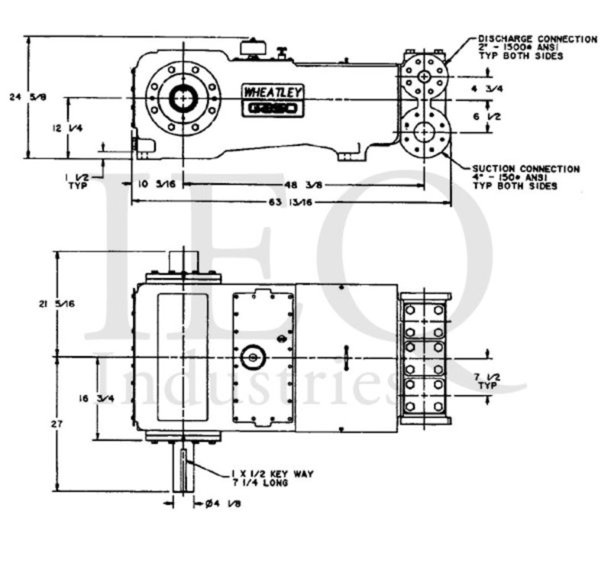

Gaso, T165-4, Triplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | 2¾" |
| Maximum Plunger Diameter: | 4" |
| Stroke length: | 5" |
| Maximum Working Pressure: | 1,715 PSI |
| Rod/Piston Load: | 10200lb |
| Gallons per Minute: | 301.9 |
| Barrels per Day: | 10351 |
| Brake Horse Power: | 159.0 |
Mouse-over to Enlarge
- Pump Curves
- Performance Data Table
- Features/benefits not available.
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 370 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T165-4 | 4.000 | 12.5664 | 27.977 | 0.8160 | 812 | 1399 | 41 | 4197 | 122 | 6994 | 204 | 9792 | 286 | 10352 | 302 |
| 3.875 | 11.7932 | 26.256 | 0.7658 | 865 | 1313 | 38 | 3938 | 115 | 6564 | 191 | 9190 | 268 | 9715 | 283 | |
| 3.750 | 11.0447 | 24.589 | 0.7172 | 924 | 1230 | 36 | 3688 | 108 | 6147 | 179 | 8606 | 251 | 9098 | 265 | |
| 3.625 | 10.3206 | 22.977 | 0.6702 | 988 | 1149 | 34 | 3447 | 101 | 5744 | 168 | 8042 | 235 | 8502 | 248 | |
| 3.500 | 9.6211 | 21.420 | 0.6247 | 1060 | 1071 | 31 | 3213 | 94 | 5355 | 156 | 7497 | 219 | 7925 | 231 | |
| 3.375 | 8.9462 | 19.917 | 0.5809 | 1140 | 996 | 29 | 2988 | 87 | 4979 | 145 | 6971 | 203 | 7369 | 215 | |
| 3.250 | 8.2958 | 18.469 | 0.5387 | 1230 | 923 | 27 | 2770 | 81 | 4617 | 135 | 6464 | 189 | 6834 | 199 | |
| 3.125 | 7.6699 | 17.076 | 0.4980 | 1330 | 854 | 25 | 2561 | 75 | 4269 | 125 | 5977 | 174 | 6318 | 184 | |
| 3.000 | 7.0686 | 15.737 | 0.4590 | 1443 | 787 | 23 | 2361 | 69 | 3934 | 115 | 5508 | 161 | 5823 | 170 | |
| 2.875 | 6.4918 | 14.453 | 0.4215 | 1571 | 723 | 21 | 2168 | 63 | 3613 | 105 | 5059 | 148 | 5348 | 156 | |
| 2.750 | 5.9396 | 13.224 | 0.3857 | 1715 | 661 | 19 | 1984 | 58 | 3306 | 96 | 4628 | 135 | 4893 | 143 | |
