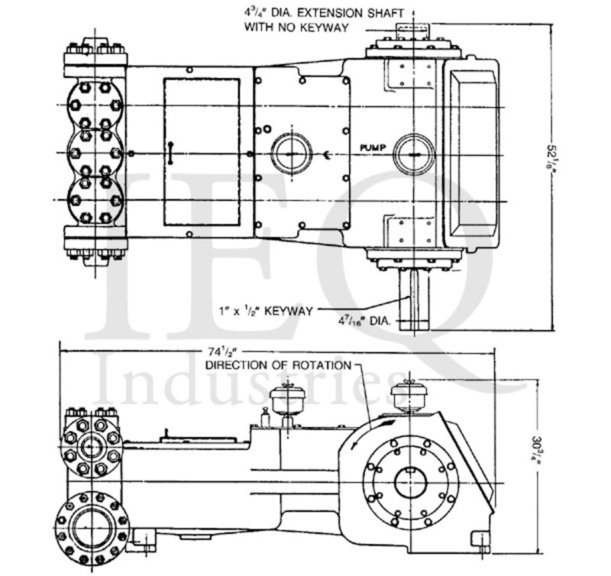

Gaso, T200-2, Triplex, Plunger Pump
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | 1½" |
| Maximum Plunger Diameter: | 2¼" |
| Stroke length: | 5" |
| Maximum Working Pressure: | 6,000 PSI |
| Rod/Piston Load: | 13200lb |
| Gallons per Minute: | 92.9 |
| Barrels per Day: | 3185 |
| Brake Horse Power: | 200.0 |
Mouse-over to Enlarge
- Pump Curves
- Performance Data Table
- Features/benefits not available.
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 150 RPM | 250 RPM | 350 RPM | 360 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T200-2 | 2.250 | 3.9761 | 8.852 | 0.2582 | 3320 | 443 | 13 | 1328 | 39 | 2213 | 65 | 3098 | 90 | 3187 | 93 |
| 2.125 | 3.5466 | 7.896 | 0.2303 | 3722 | 395 | 12 | 1184 | 35 | 1974 | 58 | 2764 | 81 | 2843 | 83 | |
| 2.000 | 3.1416 | 6.994 | 0.2040 | 4202 | 350 | 10 | 1049 | 31 | 1749 | 51 | 2448 | 71 | 2518 | 73 | |
| 1.875 | 2.7612 | 6.147 | 0.1793 | 4781 | 307 | 9 | 922 | 27 | 1537 | 45 | 2152 | 63 | 2213 | 65 | |
| 1.750 | 2.4053 | 5.355 | 0.1562 | 5488 | 268 | 8 | 803 | 23 | 1339 | 39 | 1874 | 55 | 1928 | 56 | |
| 1.625 | 2.0739 | 4.617 | 0.1347 | 6000 | 231 | 7 | 693 | 20 | 1154 | 34 | 1616 | 47 | 1662 | 48 | |
| 1.500 | 1.7671 | 3.934 | 0.1147 | 6000 | 197 | 6 | 590 | 17 | 984 | 29 | 1377 | 40 | 1416 | 41 | |
