Wheatley, T225-H (22T-2H), Triplex, Plunger Pump
Pumps in this series
T225-H (22T-2H)T225-H (32T-2H)
T225-LS (22T-2L)
T225-LS (32T-2L)
T225-M (32T-2M)
T225-M (22T-2M)

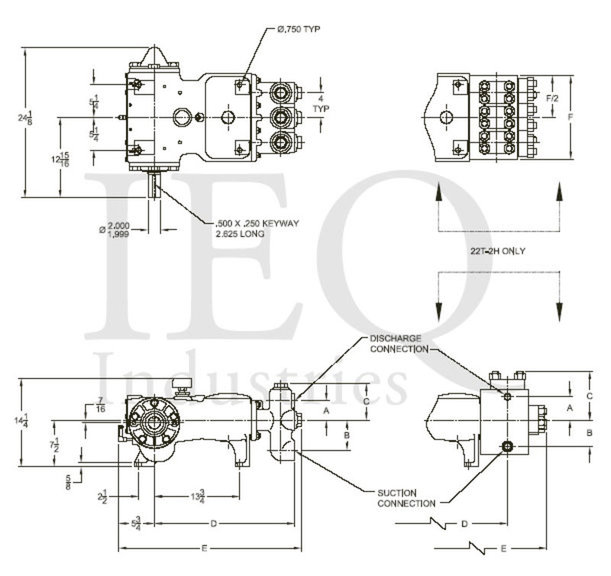

- 22 horsepower 2 1/4" stroke horizontal duplex single acting plunger pump
- Available in four different fluid end materials
- Pump speeds up to 465 RPM
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | ¾" |
| Maximum Plunger Diameter: | 1" |
| Stroke length: | 2¼" |
| Maximum Working Pressure: | 4,600 PSI |
| Rod/Piston Load: | 2550lb |
| Gallons per Minute: | 10.7 |
| Barrels per Day: | 367 |
| Brake Horse Power: | 22.0 |
Mouse-over to Enlarge
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 200 RPM | 350 RPM | 465 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T225-H 22T-2H | 1.000 | 0.7854 | 0.787 | 0.0229 | 3247 | 39 | 1 | 157 | 5 | 275 | 8 | 366 | 11 |
| 0.875 | 0.6013 | 0.602 | 0.0176 | 4241 | 30 | 1 | 120 | 4 | 211 | 6 | 280 | 8 | |
| 0.750 | 0.4418 | 0.443 | 0.0129 | 4600 | 22 | 1 | 89 | 3 | 155 | 5 | 206 | 6 | |
Power End Features
- Cast iron power frame
- Flooded sump, splash distribution lubrication
- One piece plungers
- Flooded sump, splash distribution lubrication
- Cast iron connecting rods
- Alloy steel crosshead pins
- Bronze bearing crosshead pin bushings
- Rated rod load is 2550 lbs.
Fluid End Features
- Threaded type glands and integral stuffing boxes
- Plungers - Solid Ceramic, or Tungsten Coated
- Threaded suction and discharge connectionsÂ
