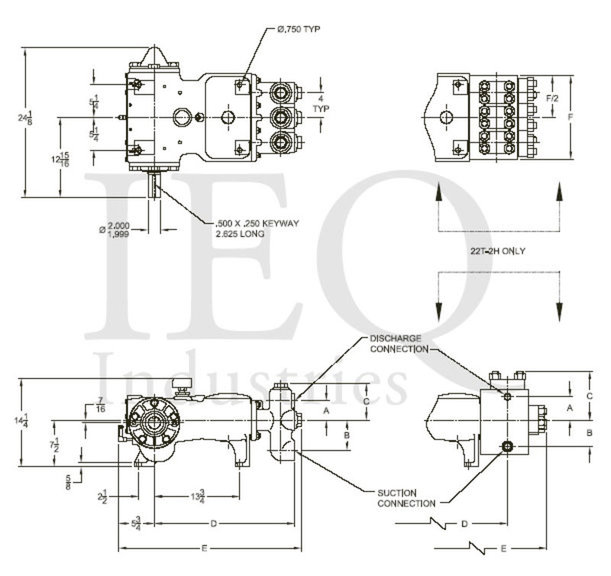

Wheatley, T225-LS (32T-2L), Triplex, Plunger Pump
Pumps in this series
T225-H (22T-2H)T225-H (32T-2H)
T225-LS (22T-2L)
T225-LS (32T-2L)
T225-M (32T-2M)
T225-M (22T-2M)
- 32 horsepower 2 1/4" stroke horizontal triplex single acting plunger pump
- Available in four different fluid end materials
- Pump speeds up to 465 RPM
Specs
| Spec | U.S. Standard |
|---|---|
| Type: | triplex |
| Minimum Plunger Diameter: | 1½" |
| Maximum Plunger Diameter: | 2" |
| Stroke length: | 2¼" |
| Maximum Working Pressure: | 2,037 PSI |
| Rod/Piston Load: | 2550lb |
| Gallons per Minute: | 42.7 |
| Barrels per Day: | 1464 |
| Brake Horse Power: | 32.0 |
Mouse-over to Enlarge
Hover over Power Curves to reveal RPM and GPM
| Pump | English Units | 50 RPM | 200 RPM | 350 RPM | 465 RPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plunger Dia. In. | Plunger Area Sq. In. | BPD per RPM | GPM per RPM | Max Press. PSI | BPD | GPM | BPD | GPM | BPD | GPM | BPD | GPM | |
| T225-LS 32T-2L | 2.000 | 3.1416 | 3.147 | 0.0918 | 812 | 157 | 5 | 629 | 18 | 1102 | 32 | 1464 | 43 |
| 1.875 | 2.7612 | 2.766 | 0.0807 | 924 | 138 | 4 | 553 | 16 | 968 | 28 | 1286 | 38 | |
| 1.750 | 2.4053 | 2.410 | 0.0703 | 1060 | 120 | 4 | 482 | 14 | 843 | 25 | 1121 | 33 | |
| 1.625 | 2.0739 | 2.078 | 0.0606 | 1230 | 104 | 3 | 416 | 12 | 727 | 21 | 966 | 28 | |
| 1.500 | 1.7671 | 1.770 | 0.0516 | 1443 | 89 | 3 | 354 | 10 | 620 | 18 | 823 | 24 | |
Power End Features:
- Cast iron power frame
- Heavy-duty roller crankshaft bearings
- Precision type, aluminum alloy crankpin bearings
- Cast iron connecting rods
- Alloy steel crosshead pins
- Alloy steel crankshaft with ground journals and polished throws
- Bronze bearing crosshead pin bushings
- Cast iron crossheads with upper/lower oil grooves
- One piece plungers
- Flooded sump, splash distribution lubrication
- Rated rod load is 3600 lbs
Fluid End Features:
- Threaded type glands and integral stuffing boxes
- Plungers - Ceramic or Tungsten Carbide coatedÂ
